High Precision Automated Hardness Tester for Steel and Metals - Jincheng

Name: High Precision Automated Hardness Tester for Steel and Metals - Jincheng
Rating: 5.0 (50 reviews)

[email protected]

Specific Information

Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time。

Product Specifications Reference

Initial test force Kg(N)

10 (98.07)

Payment method

COMM

Product Details

Product Introduction

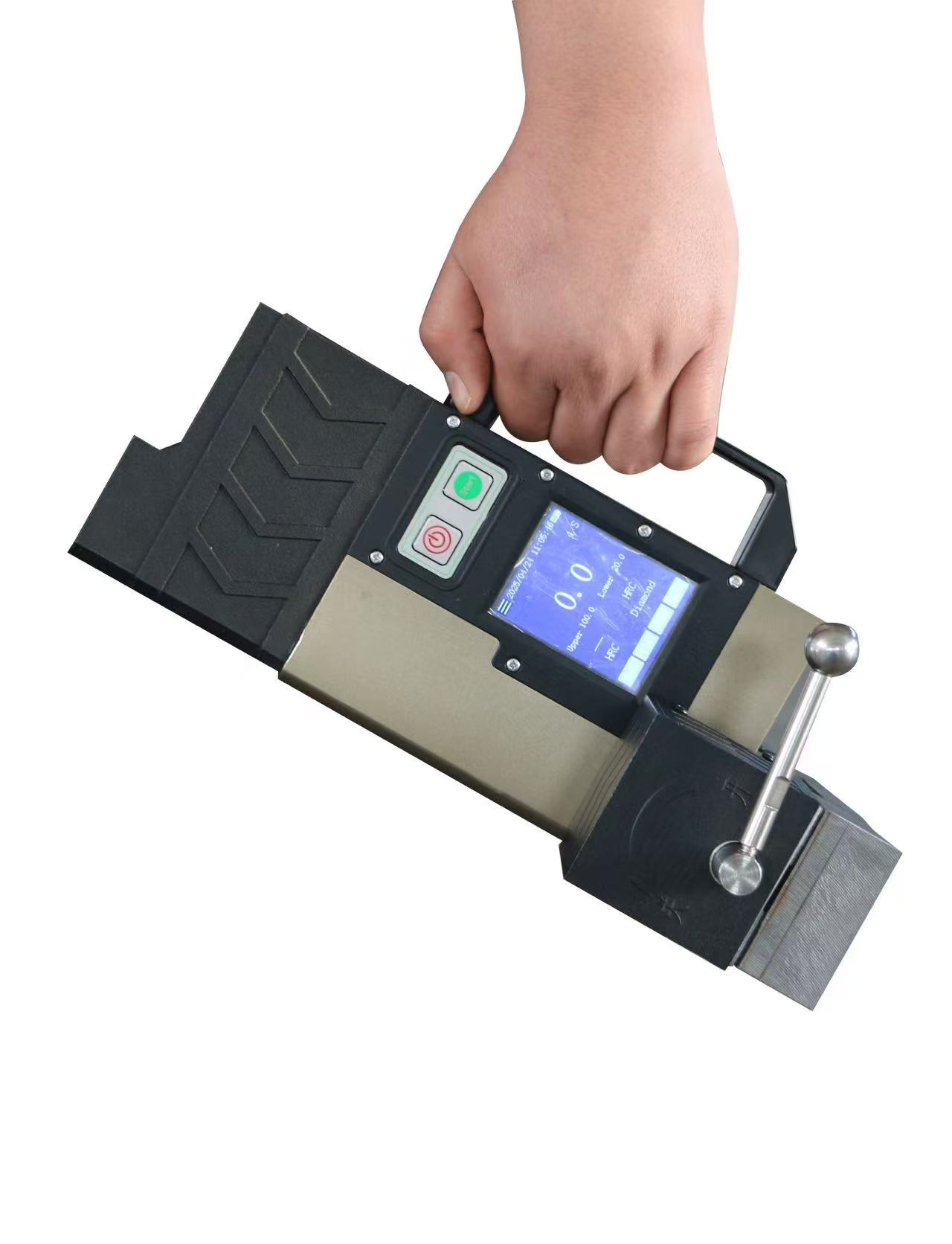

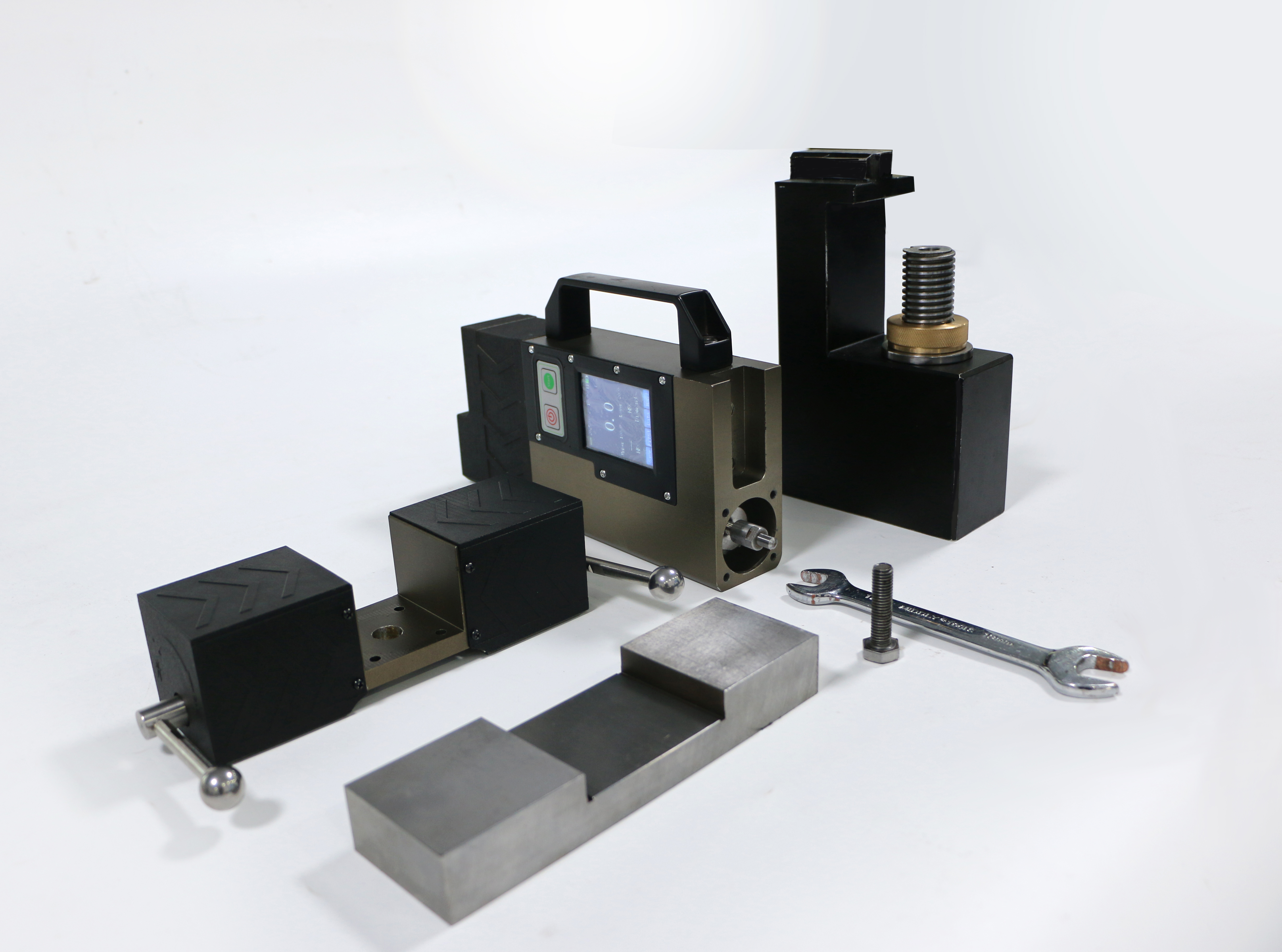

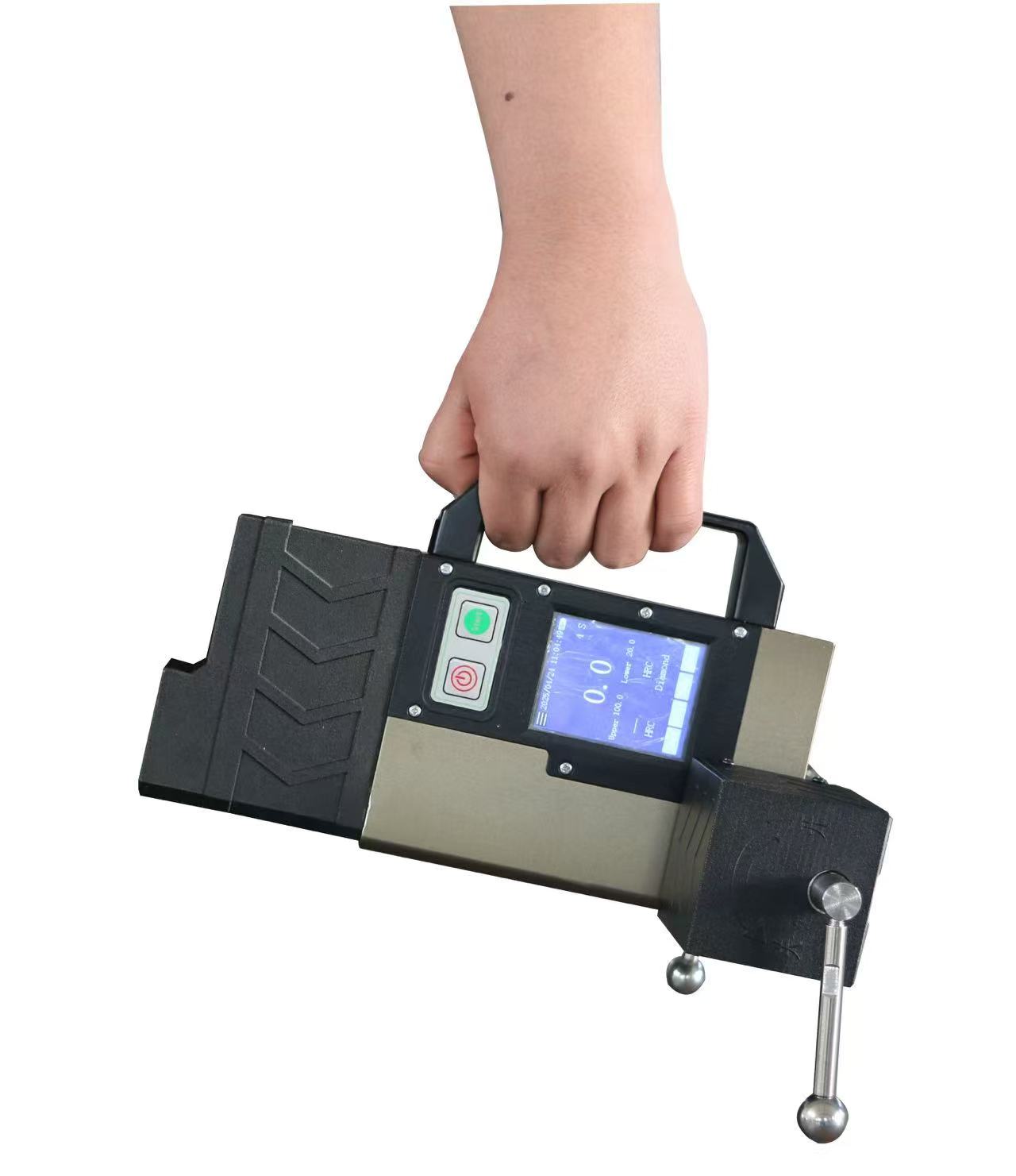

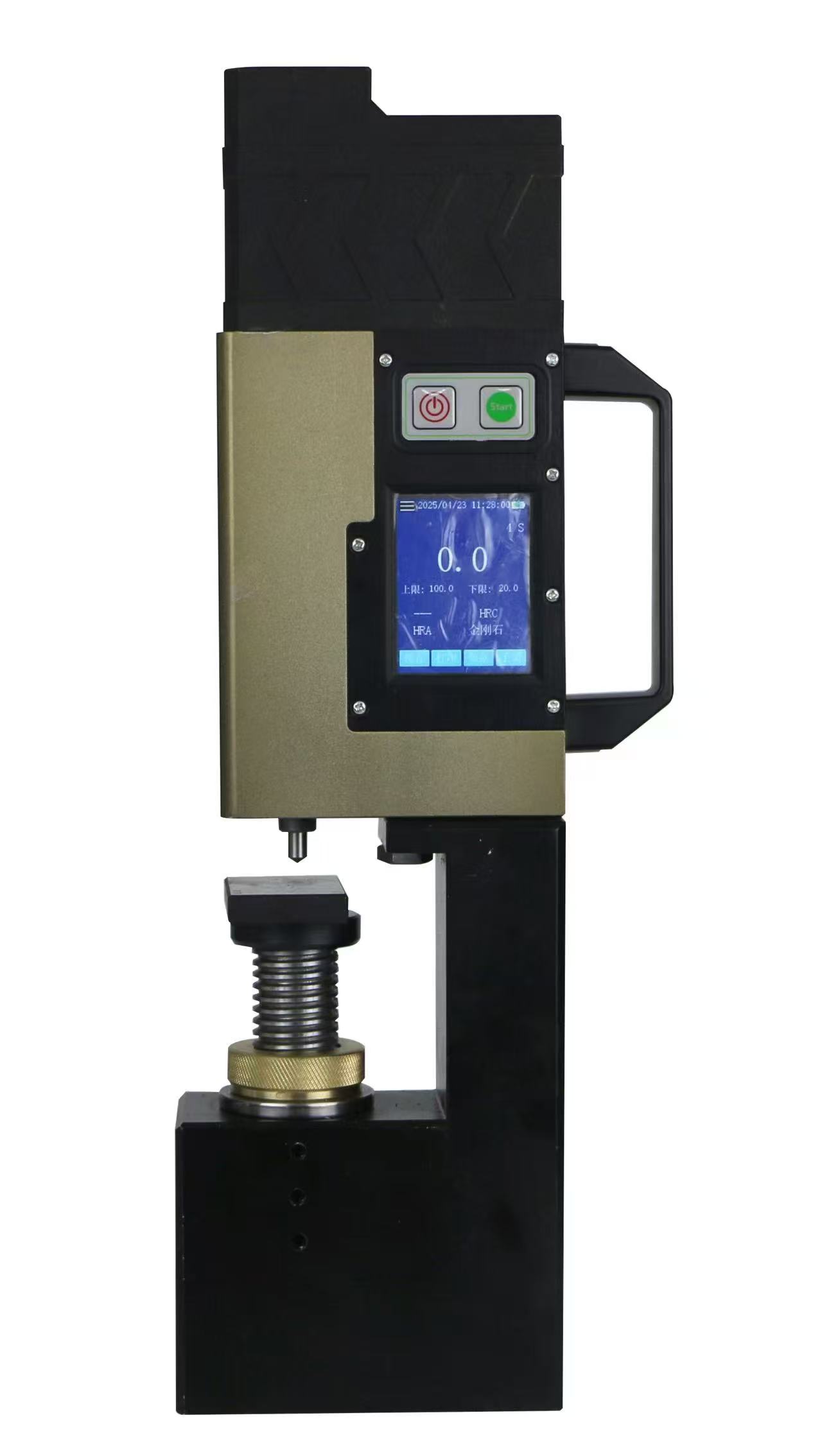

The Digital Display Automatic Magnetic Hardness Tester, proudly presented by LaiZhou Jincheng Industrial Equipment Co., Ltd., is a state - of - the - art device for metallic material hardness testing. Ideal for large steel workpieces, it strictly adheres to national standards like GB/T 230 and GB/T 231, guaranteeing accurate and reliable measurements. With user - friendly one - button operation, it simplifies the Rockwell and Brinell hardness testing process, enabling quick and efficient evaluations. The integrated magnetic suction cup ensures a secure attachment to heavy workpieces, enhancing its usability across various industrial applications. Advanced high - precision load sensors and automated force - control systems ensure consistent and accurate results. It also supports Bluetooth data transmission for easy logging and reporting, and can store up to 1000 test results, facilitating comprehensive data management. Jincheng is dedicated to offering top - notch equipment to meet diverse customer needs.

Advantages and features

1.Complies with national standards GB/T 230 and GB/T 231, ensuring measurement accuracy and reliability.
2.One - button operation simplifies the hardness testing process, saving time and effort.
3.Integrated magnetic suction cup allows for secure attachment to heavy workpieces, suitable for various industrial environments.
4.Equipped with high - precision load sensors and automated force - control systems for consistent and accurate results.
5.Supports Bluetooth data transmission and can store up to 1000 test results for easy data management.

Application Scenario

1.Suitable for the hardness testing of large steel workpieces in manufacturing industries such as automotive, aerospace, and machinery.
2.Ideal for quality control departments in factories to ensure product quality meets standards.
3.Applicable to research institutions for material property research and development.

Product Parameters

MODEL	HYC-150ZD	HYB-187.5ZD
Initial test force Kg(N)	10 (98.07)
Total test force Kg(N)	60, 100, 150 (588.4, 980.7, 1471)	62.5、187.5kgf （612.9、1839N）
Test condition	Rockwell hardness HRA、HRC、HRD、HRB、HRF、HRG	Brinell hardness HBW 2. 5/187. 5、HBW 2. 5/62. 5
Measurement range	20-95HRA，10-100HRBW，20-70HRC；	100~650 HBW
Test force control method	Closed-loop feedback system based on force sensor
Test Process Type	Full automation (automatic loading, automatic testing, automatic return)
Application Standard	GB/T 230.2	GB/T 231.2
Precision	0.01 HR	≤±1%
pressure head	120°Tungsten carbide die;1.588 mm Tungsten carbide ball	φ2.5Tungsten carbide die
Data output	Wireless printer , USB socket
Data storage	1000 groups test results
Battery	rechargeable lithium battery Battery operating time 6 hours Battery charging time 2 hours
Weight
Dimensions	208×115×267(mm)
