Home/ Products / High-Performance Metallographic Sample Preparation Machine - MP-2B

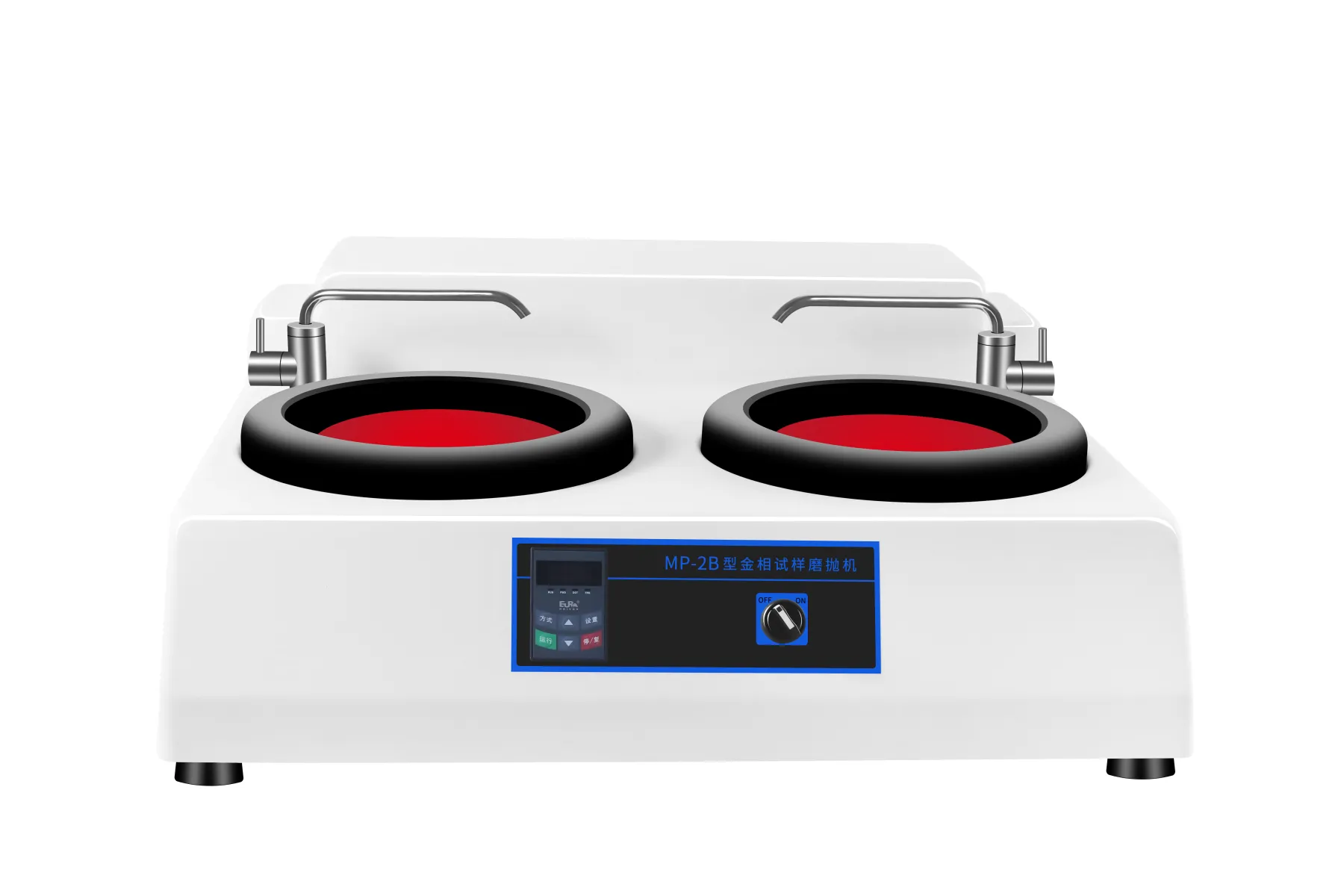

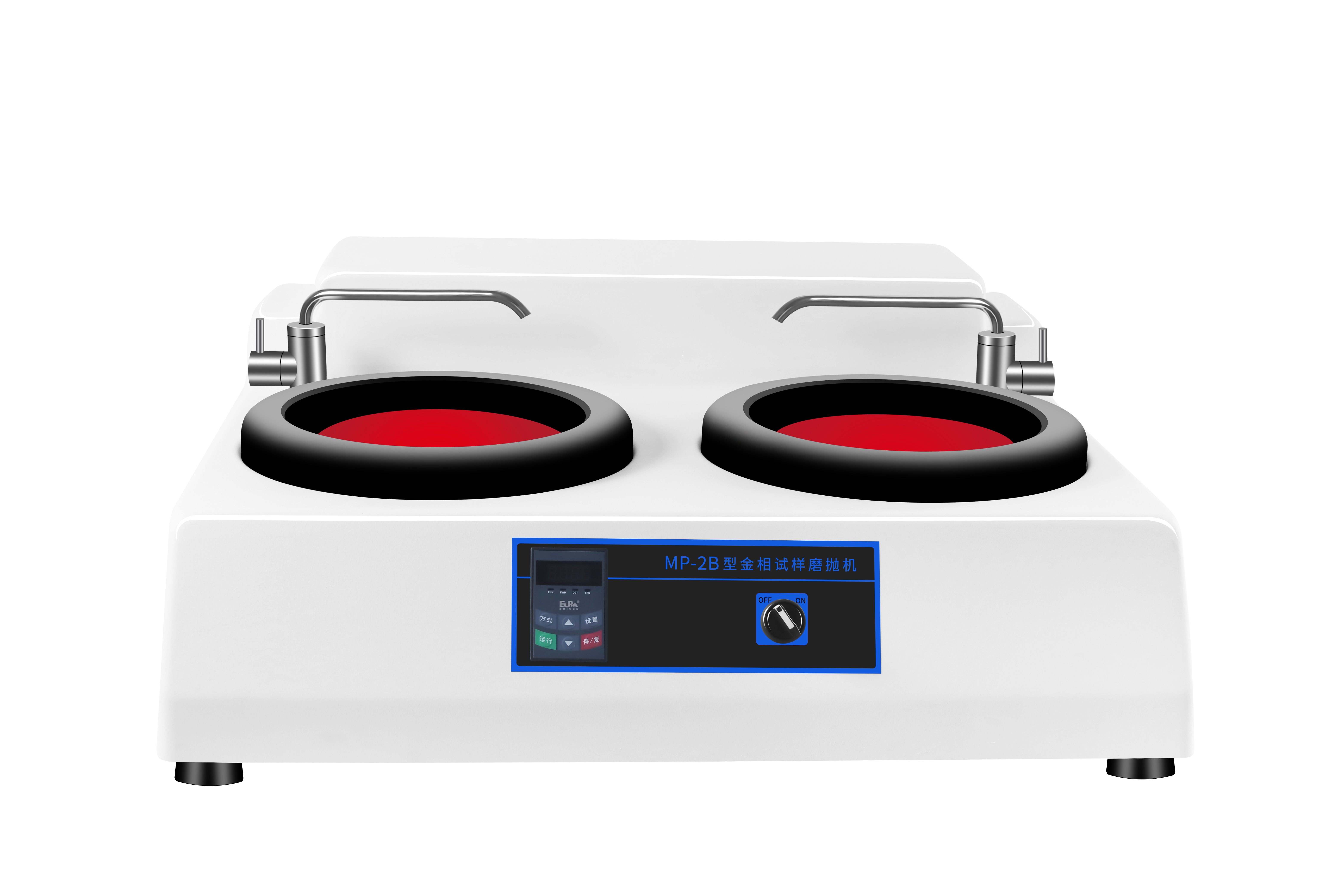

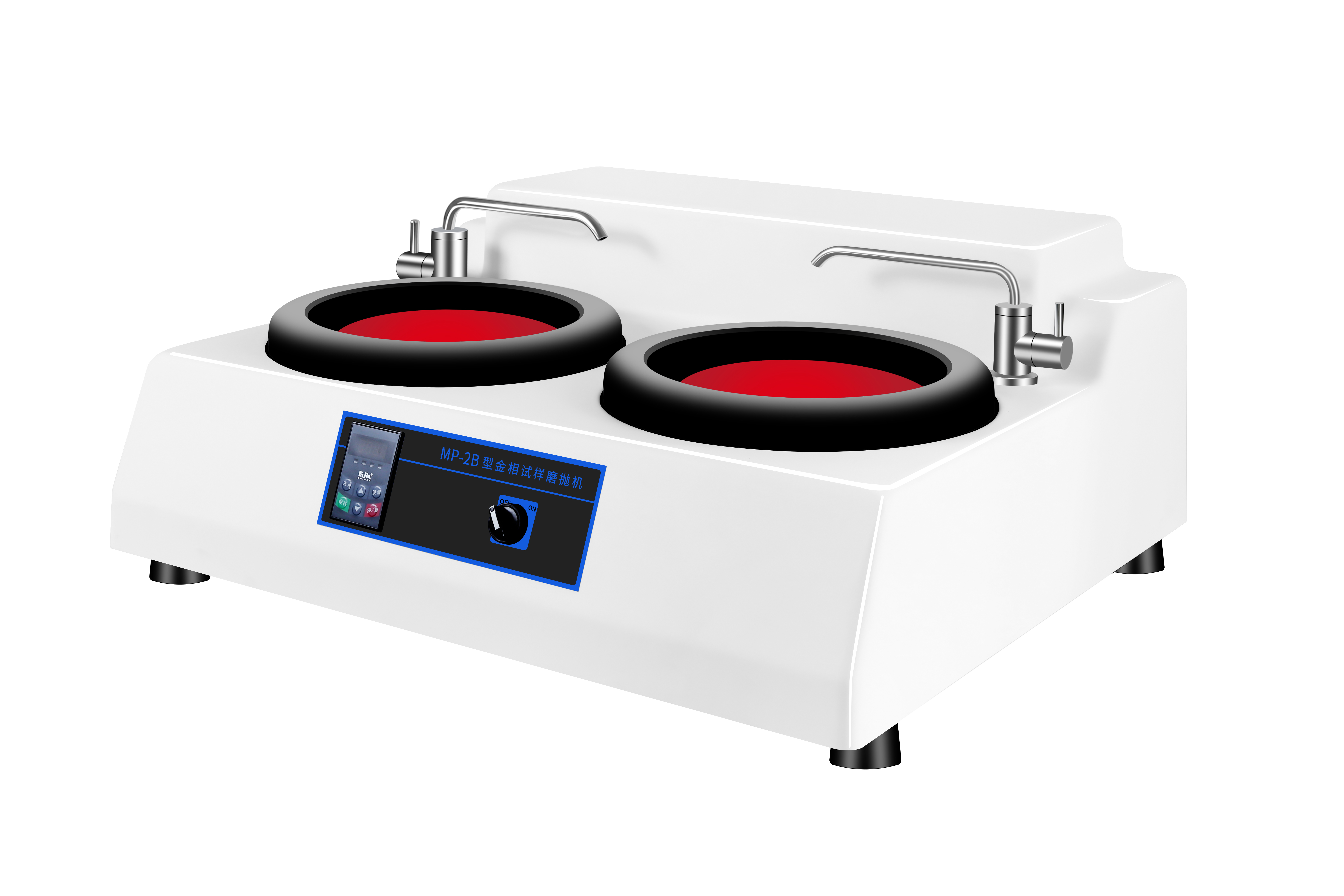

High-Performance Metallographic Sample Preparation Machine - MP-2B

[email protected]
Specific Information
Please contact us
Product Specifications Reference
Product Name
MP-2B
Polishing disc diameter (mm)
203（customized φ230,φ250）
Rotation speed (rpm)
50-1000 variable speed
Motor power
550W
Overall dimension
566*712*270mm
Packing size
758*776*421mm

Payment method

COMM
COMM
Product Details
Product Introduction
The MP - 2B Double Disc Manual Grinding and Polishing Machine, proudly presented by Laizhou Jincheng Industrial Equipment Co., Ltd., is a top - notch solution for metallographic sample preparation. This all - in - one machine integrates pre - grinding, grinding, and polishing functions. It is powered by a 550W motor and offers variable speed settings from 50 to 1000 RPM, ensuring excellent performance for both enterprises and research institutions. The user - friendly switch knob simplifies operation, making it suitable for users of all skill levels. Its high - strength ABS material casing provides long - term durability. The finely treated grinding surfaces can deliver smooth results on metallographic samples. Compliant with international standards, it offers exceptional quality and service to meet diverse customer needs.
Advantages and features
All - in - one design: Combines pre - grinding, grinding, and polishing capabilities in a single unit, saving space and cost.
Powerful motor: Equipped with a 550W motor, it can handle various sample preparation tasks efficiently.
Variable speed: Adjustable speed settings from 50 to 1000 RPM allow for customized processing according to different requirements.
User - friendly: The switch knob is easy to operate, suitable for users with different skill levels.
Durable casing: Made of high - strength ABS material, ensuring long - term use and reliability.
Smooth results: Finely treated grinding surfaces guarantee smooth and high - quality metallographic samples.
Application Scenario
Laboratories: Ideal for use in research and testing laboratories to prepare high - quality metallographic samples.
Mechanical manufacturing: Helps in the quality control and research of metal parts during the manufacturing process.
Metallurgy industry: Used for the analysis and research of metal properties, such as grain size and phase composition.
Chemical processing: Assists in the study of metal corrosion and other chemical reactions on metal surfaces.
Application Scenario Application Scenario
Product Parameters
Net weight: 40kg
Gross weight: 53kg
Input voltage: Single phase 220V±10%，50-60Hz
Type Specification Unit Quantity
Main machine MP-2B SET 1
Product Instruction SHEET 1
Product certificate SHEET 1
Packing list SHEET 1
Polishing velvet Φ200 PCS 2
Metallographic sandpaper Φ200 PCS 2
Aluminum buckle ring Φ203 PCS 1
Polishing disc Φ203 PCS 2
Inlet pipe PCS 1
Drain pipe PCS 1
Power Cord PCS 1
Common problem

How durable is the MP-2B?

The MP-2B uses a high-strength ABS shell with excellent durability. The shell is not only strong and durable, but also effectively resists the influence of various environmental factors, ensuring that the equipment still has excellent performance after long-term use. In addition, it is equipped with a 550W powerful motor to provide users with long-lasting and stable power support to ensure efficient metallographic sample preparation.

What industries is the MP-2B double-disc manual grinding and polishing machine suitable for?

MP-2B double-disc manual grinding and polishing machine is widely used in laboratories in machinery manufacturing, metallurgy and chemical processing industries. In particular, scientific research institutions and corporate quality inspection departments can meet the preparation needs of metallographic samples. It integrates pre-grinding, grinding and polishing functions in one, which can effectively improve the efficiency and quality of sample preparation, making it your ideal choice.
