High-Precision Metallographic Grinding And Polishing Equipment For Scientific Research And Industrial Applications

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250403140549/Metallographic-grinding-polishing-machineMP-260E-2.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250403140549/Metallographic-grinding-polishing-machineMP-260E-1.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250403140549/Metallographic-grinding-polishing-machineMP-260E-3.png
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time。
Product Specifications Reference
Product Name
MP-260E
Working disc diameter (mm)
203(customized φ230,φ250)
Working disc speed (rpm)
50-600,150/300
Disc rotation direction
Clockwise and counter clockwise
Motor power
550W
Overall dimension
566*712*270mm
Packing size
758*776*421mm
Net weight
42kg
Gross weight
53g

Payment method

COMM
COMM
Product Details
Product Introduction

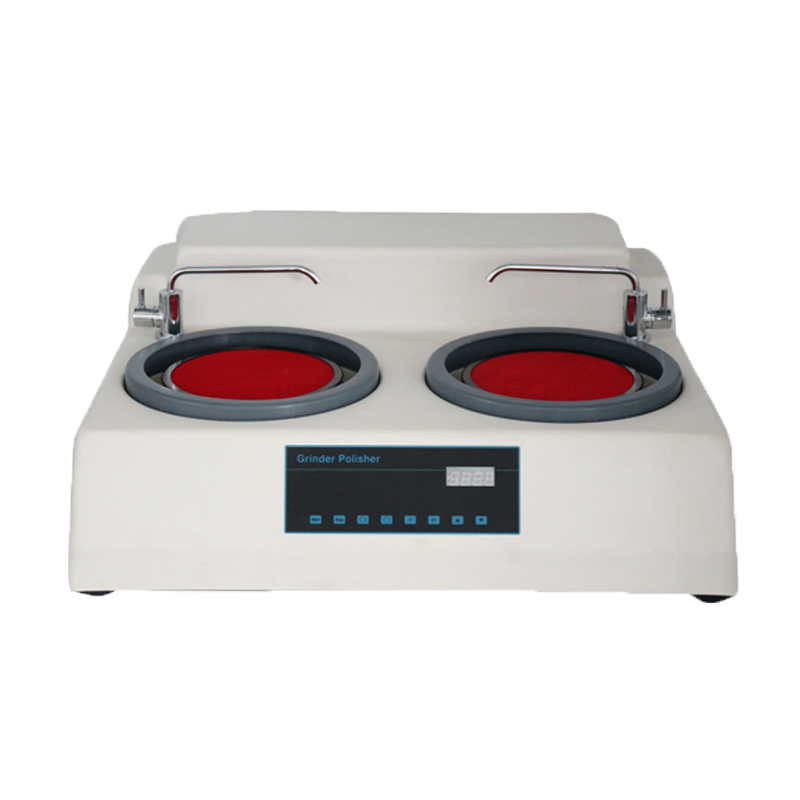

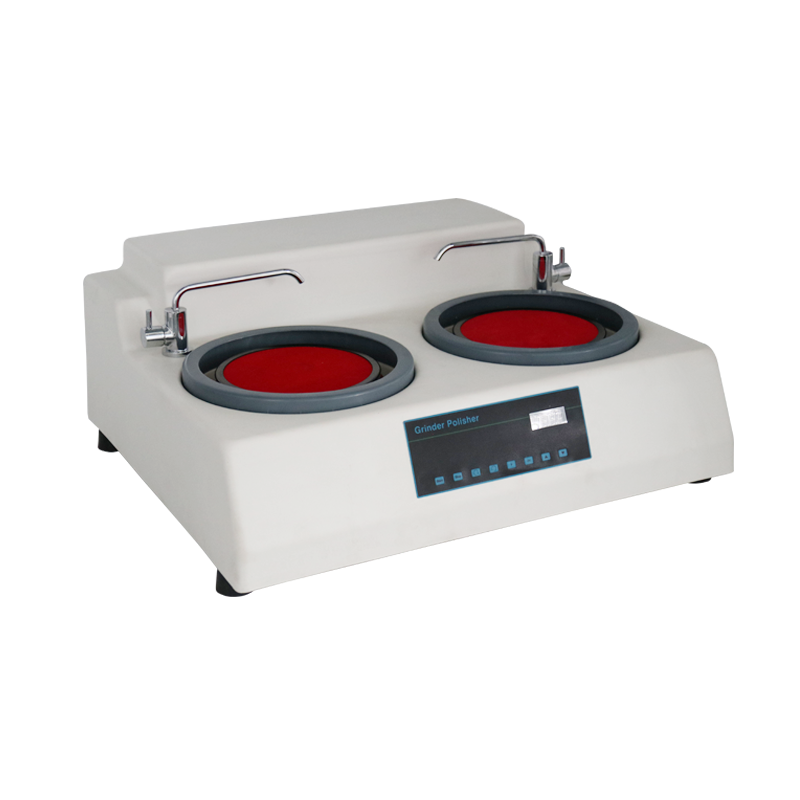

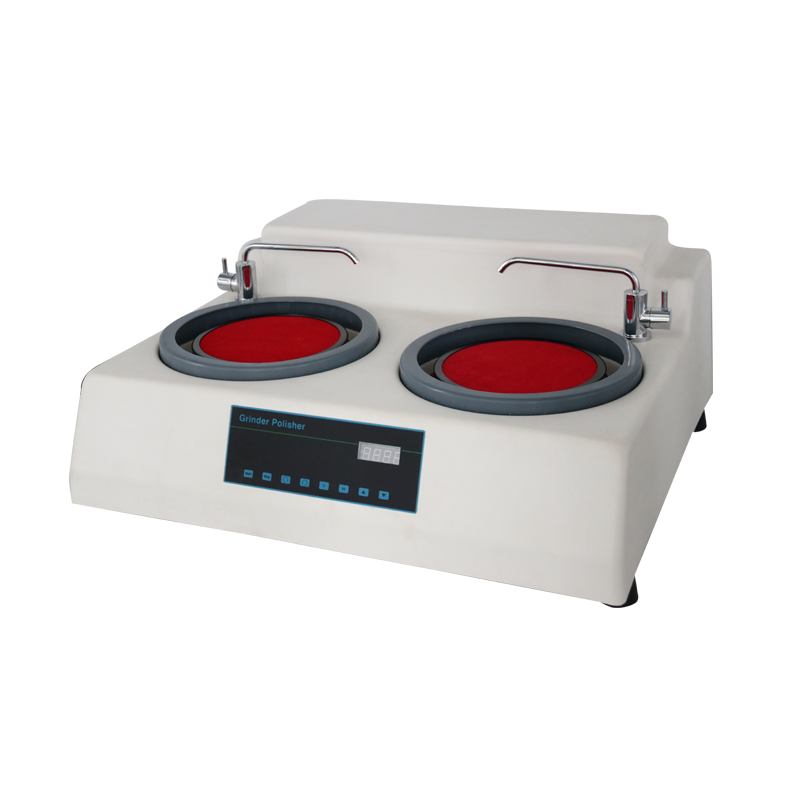

The Metallographic Grinding Polishing Machine MP - 260E, brought to you by Lai Zhou Jin Cheng Industrial Equipment Co., Ltd., is a top - notch tool for metallographic sample preparation. This machine can efficiently handle pre - grinding, rough grinding, fine grinding, rough polishing, and fine polishing processes. It is powered by a robust 550W motor and features variable speed control from 50 to 600 RPM, ensuring high - quality surface treatment. The user - friendly design includes an easy - to - operate control switch and an LED digital display for real - time speed monitoring. Its ABS material shell guarantees durability. With its ability to achieve a smooth surface finish that meets international standards, the MP - 260E is a reliable choice for various industries.
Advantages and features
1. High - power 550W motor for efficient operation.
2. Variable speed control ranging from 50 to 600 RPM, suitable for different processing requirements.
3. User - friendly design with an easy - to - operate control switch and LED digital speed display.
4. Durable ABS material shell, ensuring long - term use.
5. Capable of achieving a smooth surface finish that meets international standards.
Application Scenario
1. Enterprises in mechanical manufacturing, metallurgy, and chemical industries for industrial metallographic sample preparation.
2. Scientific research institutions for precise metallographic sample analysis.
Product Parameters
Input voltage : Single phase 220V±10%,50-60Hz
Type Specification Unit Quantity
Main machine MP-260E SET 1
Product Instruction SHEET 1
Product certificate SHEET 1
Packing list SHEET 1
Polishing velvet Φ200 PCS 2
metallographic sandpaper Φ200 PCS 2
Aluminum buckle ring Φ203 PCS 1
Polishing disc Φ203 PCS 1
Inlet pipe PCS 1
Drain pipe PCS 1
Power Cord root 1
