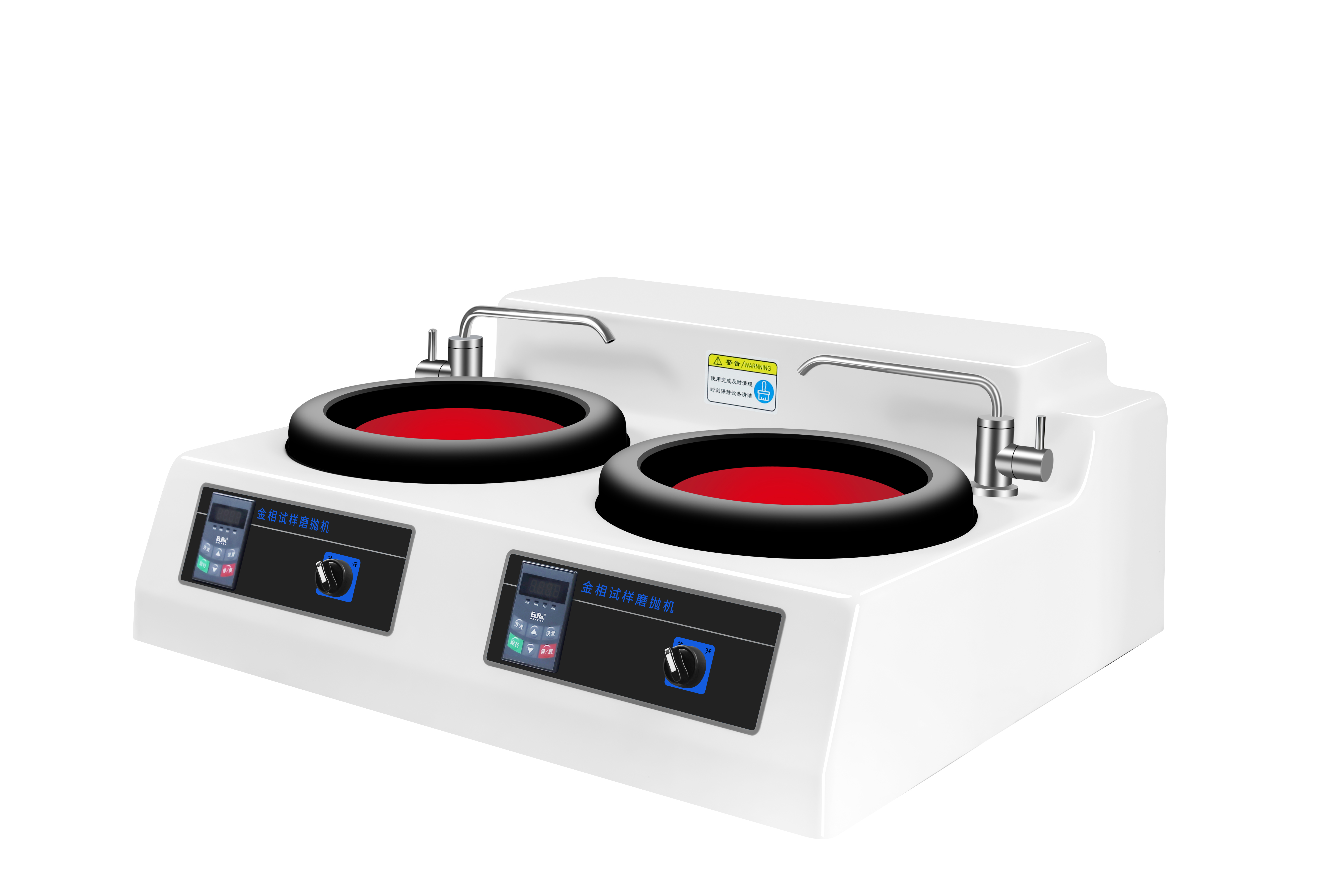

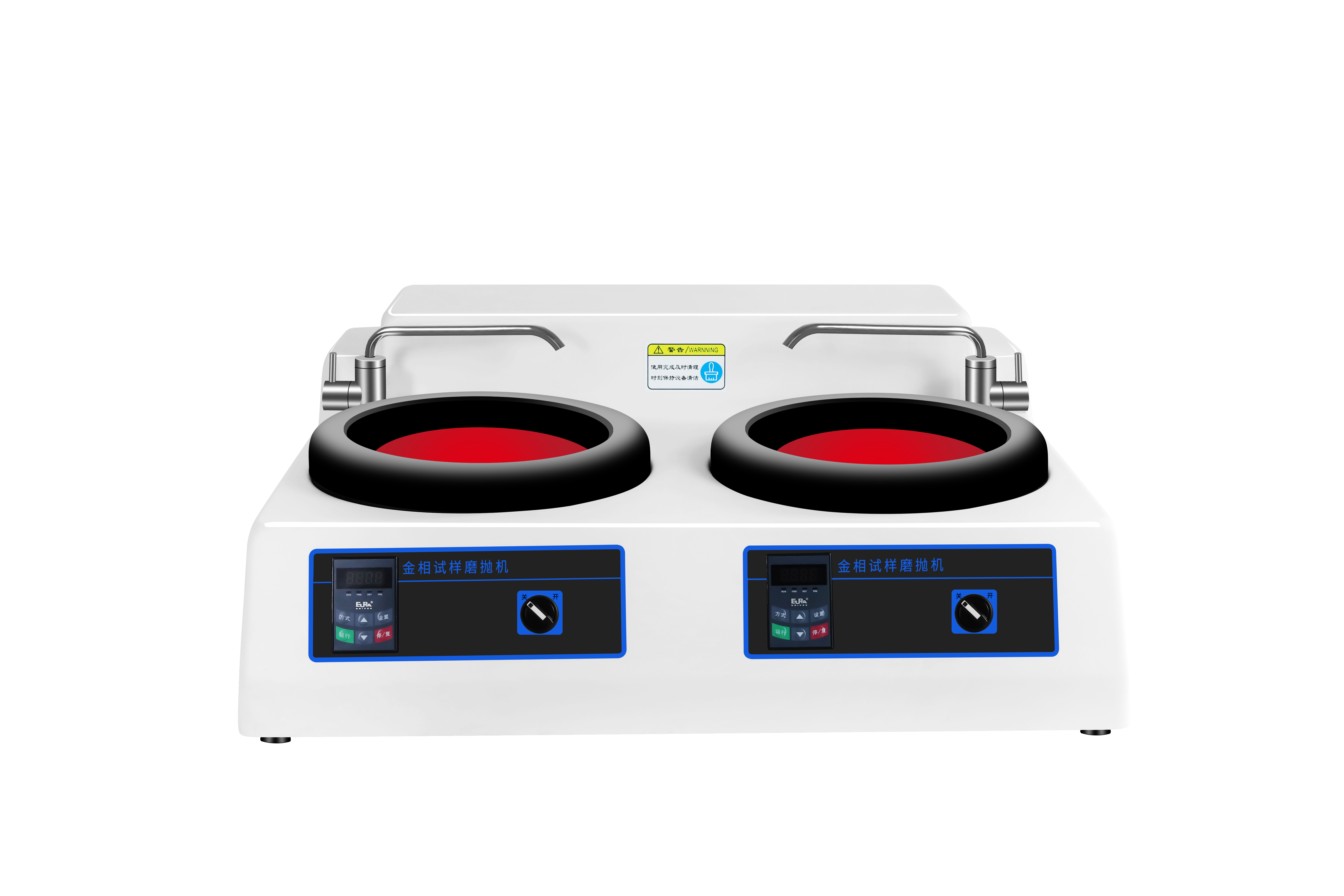

High-Performance Manual Metallographic Grinding And Polishing Machine For Laboratory And Industrial Use

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250403150310/Metallographic-grinding-polishing-machineMP-2CE-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250403150310/Metallographic-grinding-polishing-machineMP-2CE-2.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time。
Product Specifications Reference
Product Name
MP-2CE
Polishing disc diameter (mm)
203(customized φ230,φ250)
Rotation speed (rpm)
50-1000 variable speed
Motor power
550W*2
Control method
Double disc double control
Overall dimension
566*712*270mm
Packing size
758*776*421mm
Net weight
50kg
Gross weight
64kg

Payment method

COMM
COMM
Product Details
Product Introduction
The Manual Metallographic Grinding Polishing Machine MP - 2CE, proudly presented by Lai Zhou Jin Cheng Industrial Equipment Co., Ltd., is a game - changer in metallographic sample preparation. This all - in - one machine integrates pre - grinding, grinding, and polishing functions, providing a comprehensive solution for various requirements. It is powered by a robust dual - motor system and a variable speed control system, which allows for precise adjustment according to different grinding and polishing tasks. The user - friendly control knob simplifies operation, even for beginners. With a high - strength ABS shell, it promises long - term durability. The precision - engineered working disc ensures samples have a smooth surface that meets international standards. This makes the MP - 2CE an indispensable tool for accurate metallographic analysis.
Advantages and features
1. All - in - one design: Combines pre - grinding, grinding, and polishing functions in a single machine.
2. Powerful dual - motor setup: Ensures stable and efficient operation for various tasks.
3. Variable speed control: Allows users to adjust the speed according to specific requirements.
4. User - friendly operation: Features a convenient control knob for easy use.
5. Durable construction: High - strength ABS shell provides long - lasting durability.
6. Precision surface finish: The working disc guarantees a smooth sample surface meeting international standards.
Application Scenario
This machine is suitable for enterprises and scientific research institutions in mechanical manufacturing, metallurgy, and chemical industries. It is an ideal choice for professionals around the world who are engaged in metallographic analysis and need reliable and efficient sample preparation equipment.
Product Parameters
Input voltage: Single phase 220V±10%,50-60Hz
Type Specification  Unit  Quantity
Main machine MP-2CE SET 1
Product Instruction SHEET 1
Product certificate SHEET 1
Packing list SHEET 1
Polishing velvet Φ200 PCS 2
Metallographic sandpaper Φ200 PCS 2
Aluminum buckle ring Φ203 PCS 1
Polishing disc Φ203 PCS 2
Inlet pipe PCS 1
Drain pipe PCS 1
Power Cord PCS 1
