High-Efficiency Metallographic Sample Preparation Machine For Laboratories And Enterprises

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250403111235/Metallographic-grinding-polishing-machineMP-2S-1.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250403111235/Metallographic-grinding-polishing-machineMP-2S-2.png
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time。
Product Specifications Reference
Product Name
MP-2S
Polishing disc diameter (mm)
203(customized φ230,φ250)
Rotation speed (rpm)
variable speed 50-1000,150/300/600/800
Working disc rotation direction
Clockwise and counter clockwise
Motor power
550W
Control method
Double disk single control
Overall dimension
860*660*355mm
Packing size
980*920*470mm
Net weight
55kg
Gross weight
84.8kg

Payment method

COMM
COMM
Product Details
Product Introduction

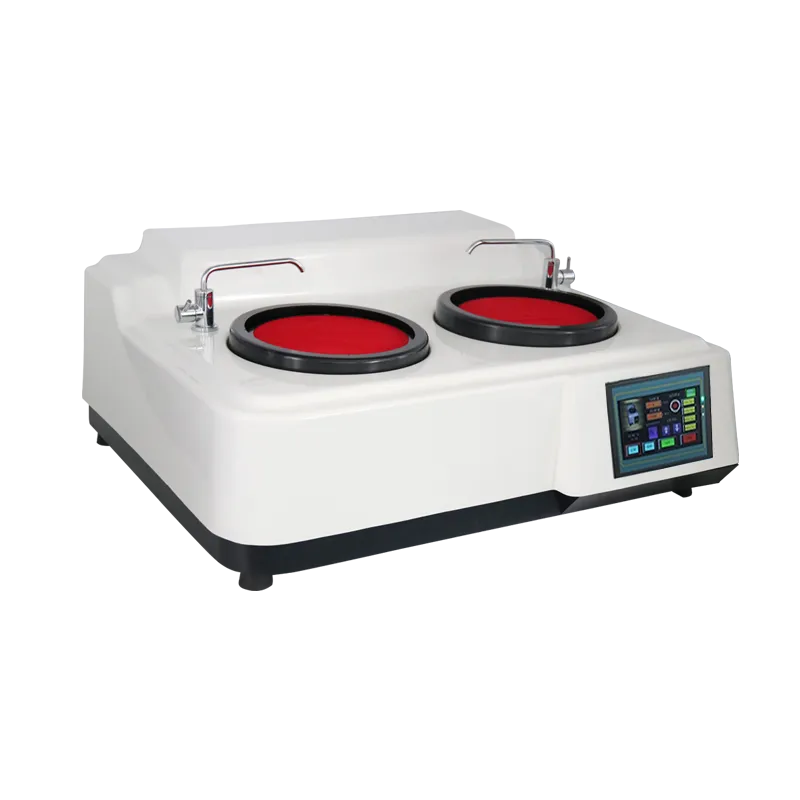

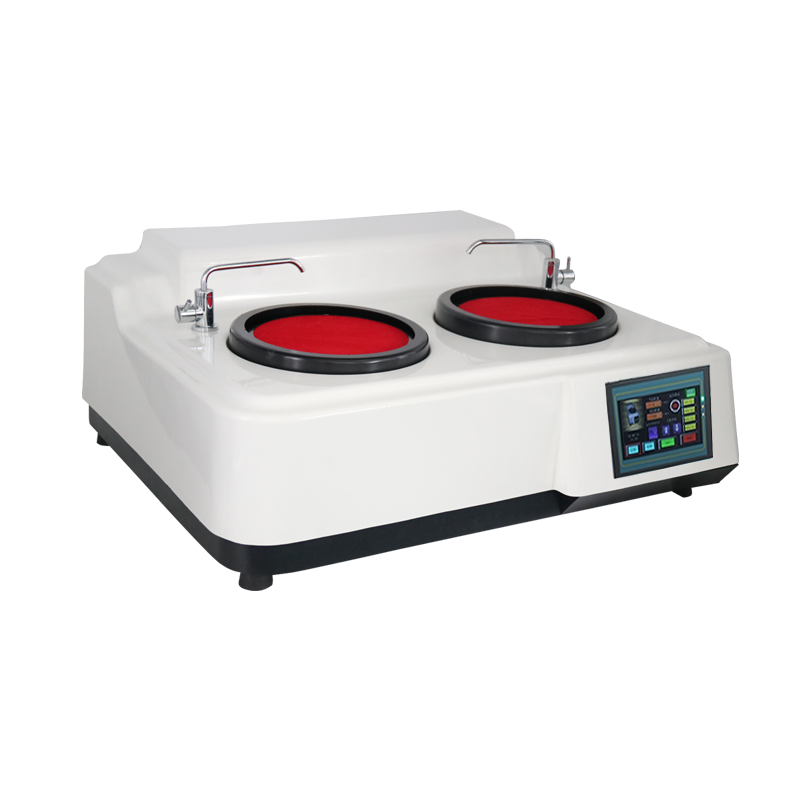

The MP - 2S Double Disc Manual Grinding Polishing Machine, brought to you by Laizhou Jincheng Industrial Equipment Co., Ltd., is a top - notch product designed for metallographic sample preparation. This machine integrates pre - grinding, grinding, and polishing functions, which is highly versatile. With robust power and low - noise operation, it ensures a smooth working environment. The user - friendly LCD screen simplifies the control process, enabling operators to achieve precise results easily. Its variable - speed control system, optimized for grinding and polishing, guarantees the utmost care and precision in sample processing. Constructed from high - strength glass steel materials, it is durable enough for continuous use. The finely polished work discs can produce exceptionally smooth sample surfaces that meet international standards. It reflects Laizhou Jincheng's commitment to quality and innovation in hardness testing and metallographic analysis equipment.
Advantages and features
1. Multi - functional integration: Combines pre - grinding, grinding, and polishing functions in one machine.
2. Quiet operation: Low - noise design creates a comfortable working environment.
3. User - friendly control: The LCD screen allows for easy and precise operation.
4. Precise processing: Variable - speed control system ensures high - precision sample processing.
5. Durable construction: Made of high - strength glass steel materials for long - term use.
6. High - quality finish: Finely polished work discs produce surfaces that meet international standards.
Application Scenario
This machine is suitable for laboratories in various industries, including metallurgy, materials science, and mechanical engineering. It is also ideal for enterprises involved in metal product manufacturing, quality control, and research institutions conducting metallographic analysis. It can serve markets worldwide, meeting the needs of customers who require high - precision metallographic sample preparation.
Product Parameters
Input voltage: Single phase 220V±10%,50-60Hz
Type Specification Unit Quantity
Main machine MP-2S SET 1
Product Instruction SHEET 1
Product certificate SHEET 1
Packing list SHEET 1
Polishing velvet Φ200 PCS 2
Metallographic sandpaper Φ200 PCS 2
Aluminum buckle ring Φ203 PCS 2
Polishing disc Φ203 PCS 2
Dust cover PCS 2
Inlet pipe PCS 1
Drain pipe PCS 1
Water retaining ring PCS 2
Power Cord PCS 1
