High Precision Multi-Function Hardness Tester for International Quality Control

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250331095232/Portable-hardness-testerHBRVD-187.5-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250331095232/Portable-hardness-testerHBRVD-187.5-2.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250331095232/Portable-hardness-testerHBRVD-187.5-3.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time.

Payment method

COMM
COMM
Product Details
Product Introduction

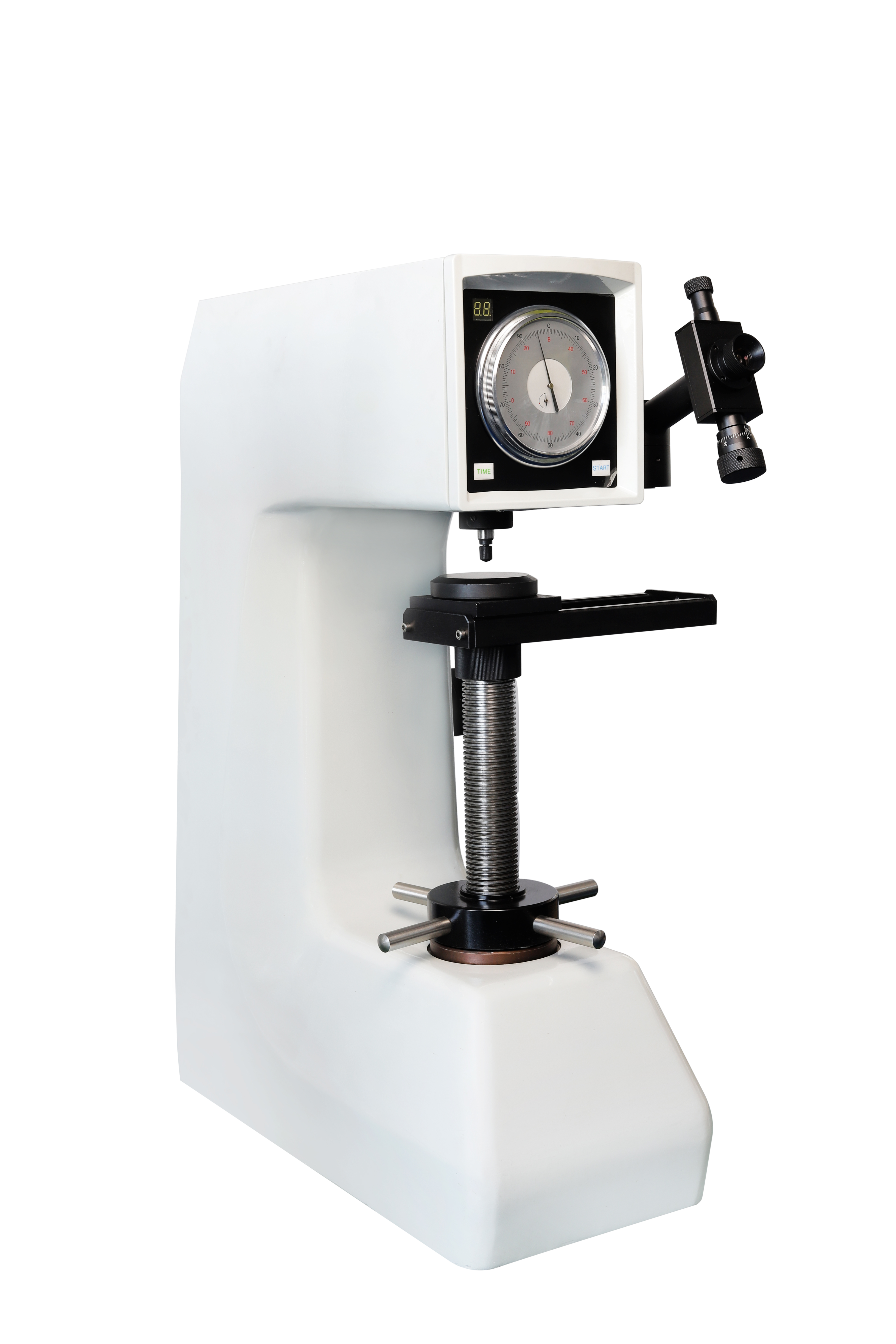

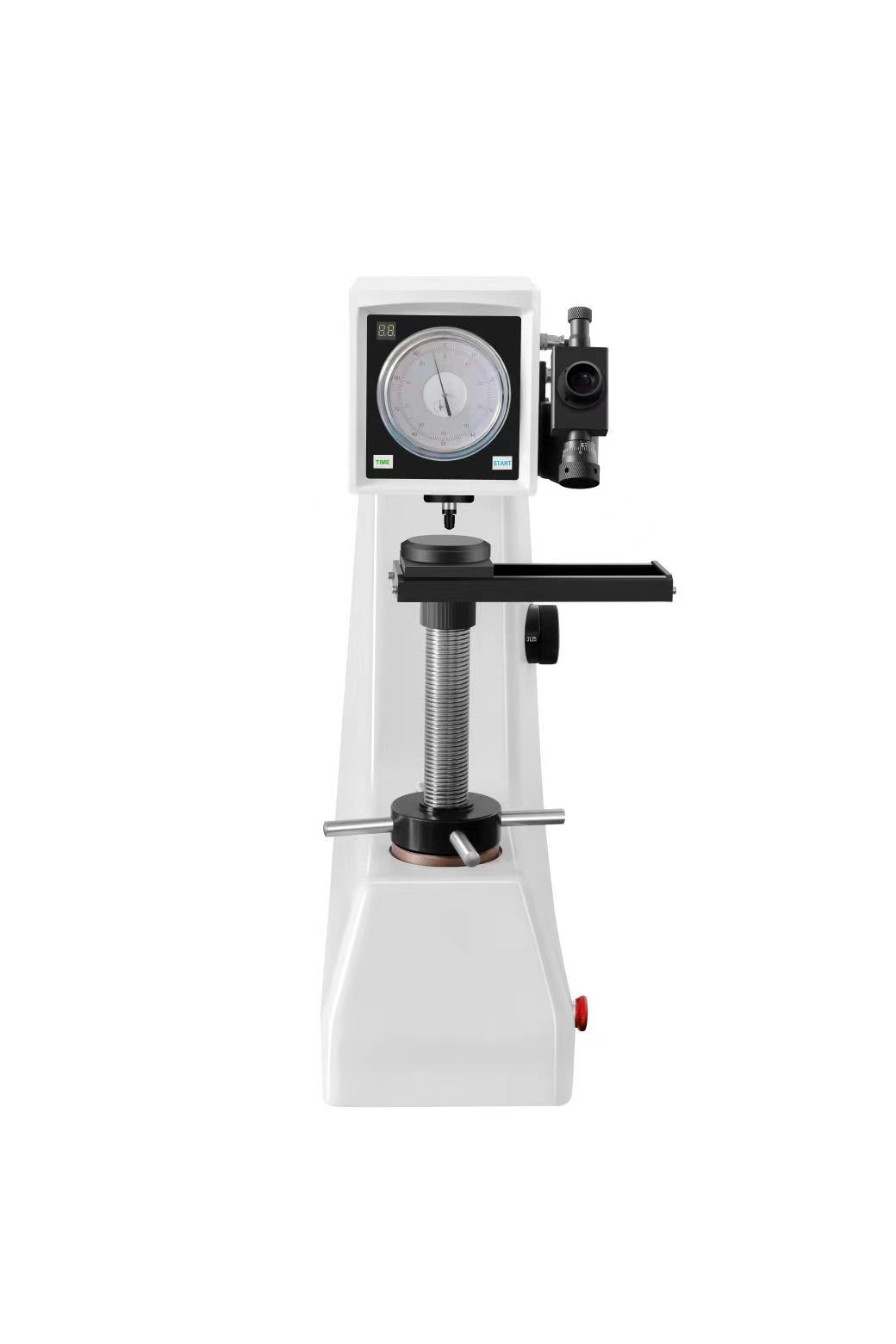

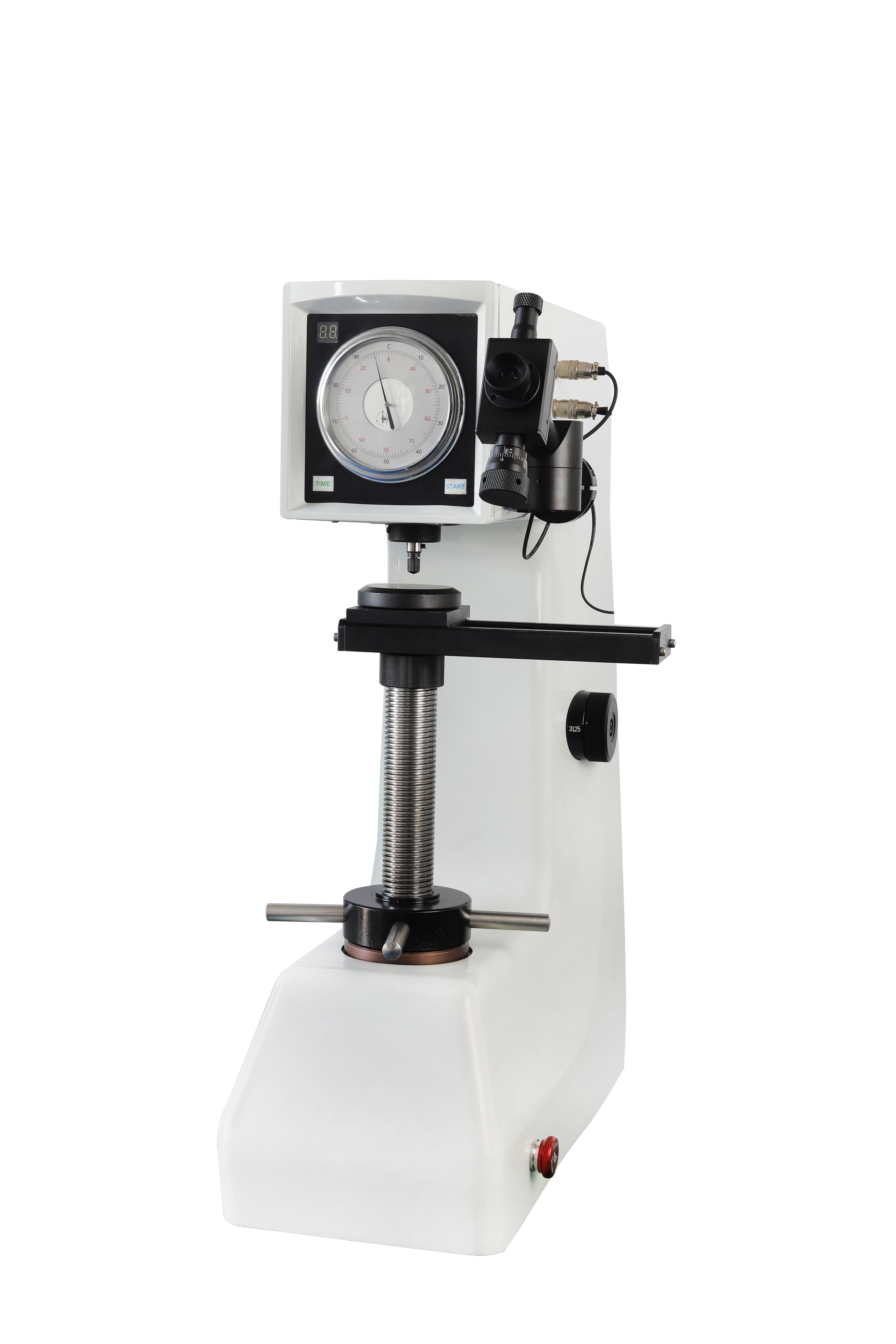

The HBRVD-187.5 Electric Blovey Hardness Tester, developed by Laizhou Jincheng Industrial Equipment Co., Ltd., is a revolutionary tool in the field of hardness testing. This state - of - the - art device combines advanced mechanical, electrical, and optical technologies, enabling seamless execution of Brinell, Rockwell, and Vickers hardness tests. With a variety of testing forces and a user - friendly display, it offers precise measurements for quenched, tempered, and annealed materials. Designed to meet international standards, it is the go - to choice for high - end laboratories and quality control departments. Laizhou Jincheng is dedicated to providing excellent products and services, catering to clients in Russia, Southeast Asia, Europe, the Middle East, and North America. Choose our tester to improve your quality assurance operations.
Advantages and features
1. Integration of advanced mechanical, electrical, and optical technologies for accurate testing.
2. Capable of performing Brinell, Rockwell, and Vickers hardness tests in one device.
3. Multiple testing forces available to suit different materials and requirements.
4. Clear and intuitive display for easy operation and reading of results.
5. Meets international standards, ensuring reliability and credibility in quality control.
Application Scenario
Industrial applications such as metallurgy, manufacturing, and research.
High - end laboratories and quality control departments in various industries.
Markets in Russia, Southeast Asia, Europe, the Middle East, and North America, suitable for clients seeking reliable and efficient hardness testing equipment.
Process

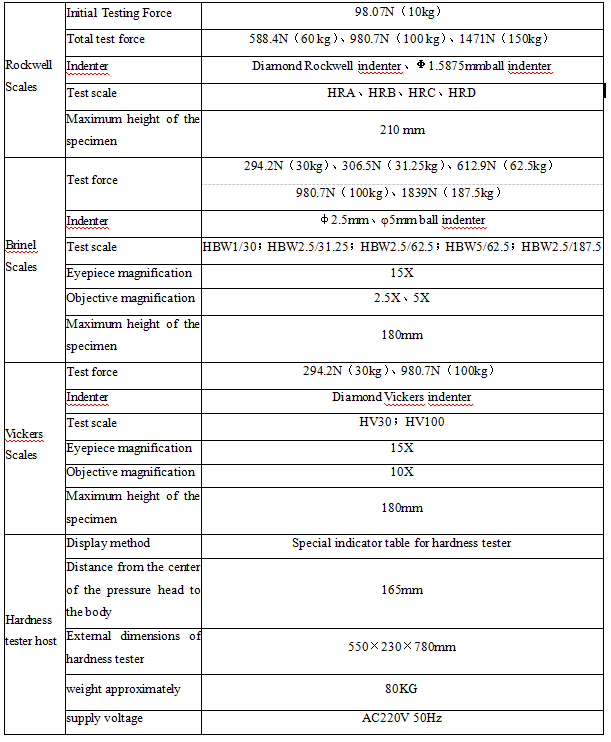

Portable hardness testerHBRVD-187.5 Technical parameters
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250410175903/33.png
Product Parameters
Hardness tester host: 1
Diamond Vickers indenter: 1
HRC standard hardness block: 3
HRB standard hardness bloc: 1
HRA standard hardness bloc: 1
HV standard hardness bloc: 1
HB standard hardness bloc: 1
Horizontal adjustment screw: 4
Power line: 1
Diamond Rockwell indenter: 1
φ1.5875mm ball indenter φ2.5mm ball indenter φ5mm ball indenter: Each 1
Pressure head set screw: 1
big、small、V-shaped sample stage: Each 1
Eyepiece: 1
Slide sample table: 1
2.5X、5X、10X objective: Each 1
Level gauge: 1
Fuse 2A: 2
