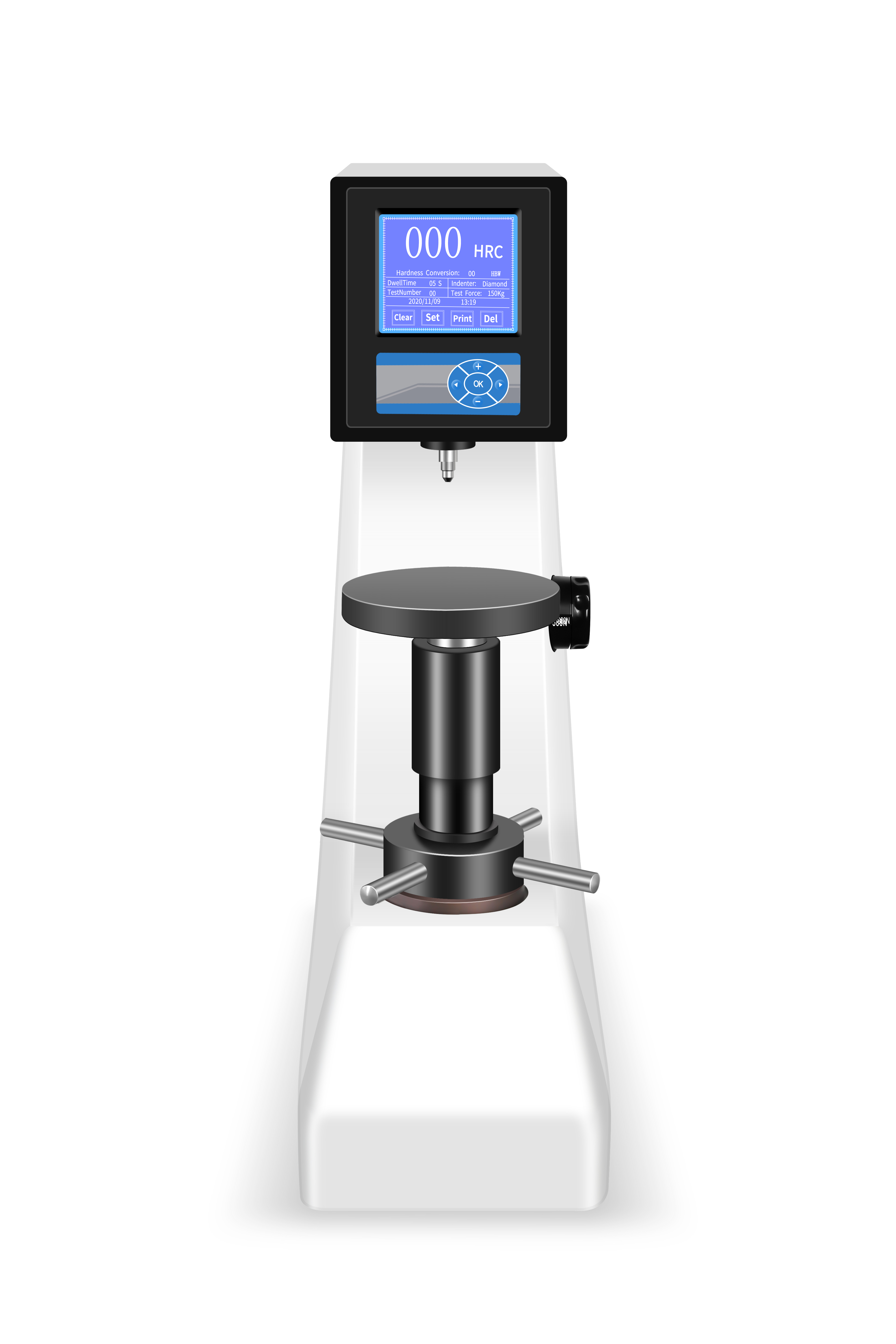

The high-precision digital Rockwell hardness tester HRS-150 is suitable for accurate hardness testing in multiple industries.

Specific Information
Please contact us
Product Specifications Reference
Test forceTest force
60、100、150kgf 588.4、980.7、1471N
Measuring range
20-88HRA,20-100HRB,20-70HRC
Max. allowable height of the test piece
210mm
The distance from the center of the indenter to the machine wall
165mm
Hardness Resolution
0.1HR

Payment method

COMM
COMM
Product Details
Product Introduction
The Digital Rockwell Hardness Tester HRS - 150, brought to you by Laizhou Jincheng Industrial Equipment Co., Ltd. under the brand of Jincheng, is a high - tech and high - precision product with stable performance. This mechanical and electrical integration instrument features a menu - based interface for simple, intuitive, and convenient operation. It uses a grating sensor and an ARM32 - bit chip control system, directly displaying the hardness value on the LCD screen. It can automatically convert various hardness parameters, and comes with a printer for reading test results. The automated operation eliminates human errors. The test force loading, holding, and unloading are motor - controlled, ensuring accuracy that conforms to GB/T230.2 - 2018, ISO6508 - 2, and American ASTM E18 - 16 - M standards. It is suitable for a wide range of industries, including mechanical manufacturing, metallurgy, and more, meeting international customers' high - standard testing needs.
Advantages and features
1. High - precision measurement with a grating sensor and ARM32 - bit chip control system.
2. Automated operation eliminates human operation and reading errors.
3. Can automatically convert various hardness parameters, providing more flexibility in testing.
4. Motor - controlled test force operation, improving accuracy compared to manual testers.
5. Conforms to multiple international standards, ensuring global acceptance.
Application Scenario
This product is widely used in industries such as mechanical manufacturing, metallurgy, chemical, and power. It is suitable for customers in Russia, Southeast Asia, and Europe, including large - scale metallurgical enterprises, as well as (universities) and research institutions for hardness testing and quality control purposes.
Product Parameters
Power supply: AC220V,50Hz
Dimensions: 220*510*694mm
Net weight: 98kg
Type Specification Unit Quantity
Diamond Rockwell Indenter Pc 1
Ball indenter Φ1.5875mm Pc 1
Test bench Big flat, small flat, V-shape Pc 3
Hardness block HRA、HRB、HRC High Medium Low Pc 5
Power cable Pc 1
Standard weight A、B、C Pc 3
Dust-proof plastic cover Pc 1
Product certificate Sheet 1
Instruction Manual Sheet 1
Common problem

How to process the test data after using HRS-150 hardness tester?

The HRS-150 hardness tester comes with a printer that can directly print the test results, making it convenient for users to record and analyze data. Its automated operation reduces errors in operation and ensures the reliability of data. Users can easily master the test parameters, providing an important basis for subsequent product quality control.

What are the operational advantages of the HRS-150 hardness tester?

The HRS-150 hardness tester has a menu-based interface, simple and intuitive operation, and is user-friendly. Its automated operation eliminates human reading errors and can automatically convert multiple hardness parameters, making it more flexible. This allows users to easily obtain accurate results and improve work efficiency when performing hardness tests.
