| Turret mechanism: | Automatic |
|---|---|
| Dwell time: | 1~60s |
| Eyepiece: | 10X |
| Focusing objective: | 10X/40X |
| Measure : | HV（HK Optional） |
| Maximum height of the sample （mm）: | 90 |
| Distance from the center of the indenter to the machine wall（mm）: | 110 |
| Digital camera: | Resolution of 1.3 million pixels, real-time display of hardness images, capable of storing and printing images |
| Type | Automatic X-Y workbench |
|---|---|
| Motor | Stepper motor drive |
| Drive Method | X. Y, Z axis (moving in any direction) |
| Stage size（mm) | 100×100 |
| Maximum movement(mm) | 50×50 |
| Movement speed | Equipped with two speeds (fast and slow, users can set themselves, and these two speeds fully meet the movement of the hardness tester) |
What are the operational advantages of this microhardness tester?

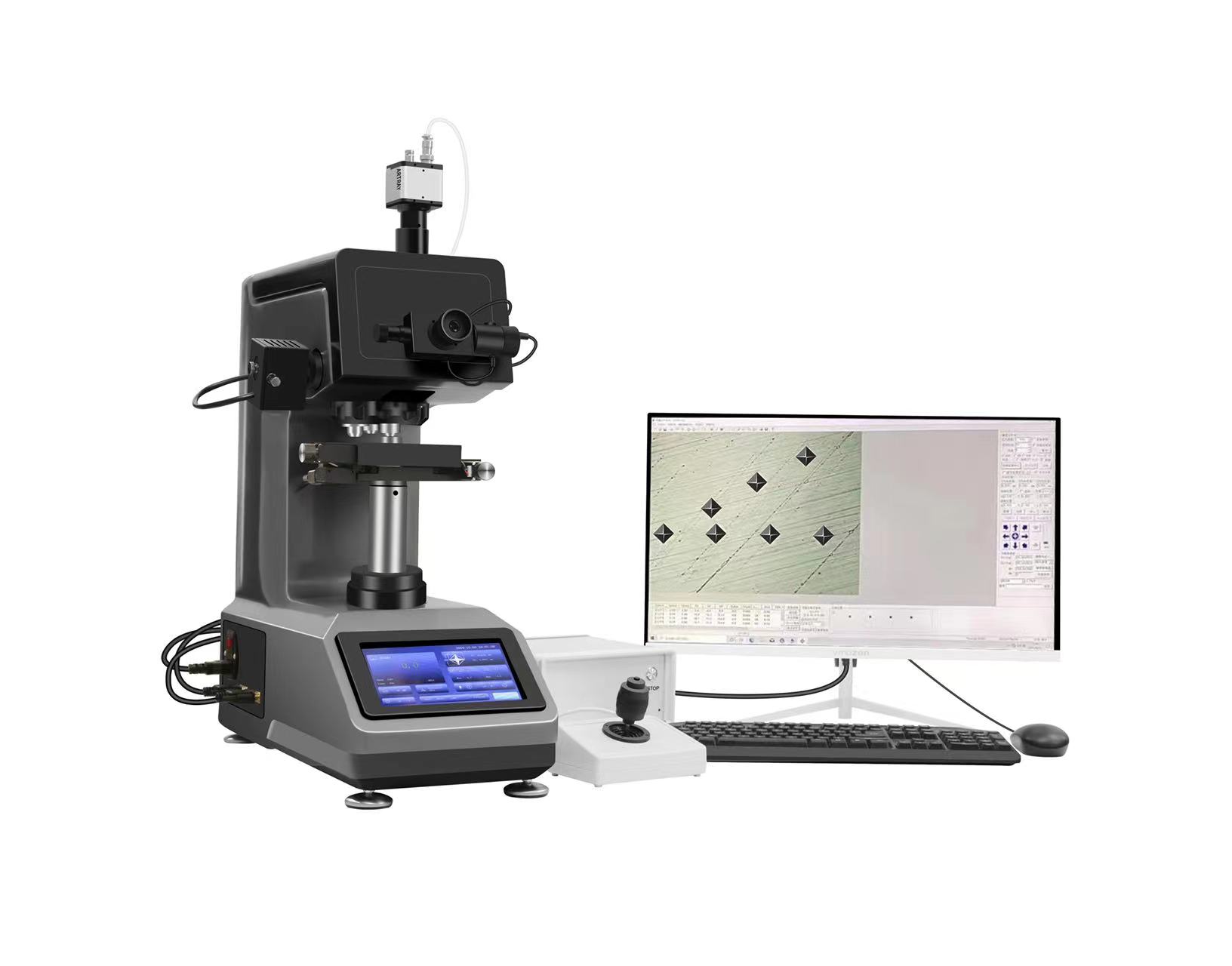

The 7MHXZD-1000A microhardness tester has a large LCD display and an integrated casting body, which is intuitive and sturdy. Its worm gear lifting structure ensures smooth operation, and the built-in automatic focusing and XYZ three-axis fully automatic function can complete the entire test with one button, greatly simplifying the operation process and improving work efficiency, which is suitable for various user needs.
7MHXZD-1000A microhardness tester is suitable for what materials hardness testing?
7MHXZD-1000A microhardness tester is widely used in materials after quenching, tempering, annealing, etc., such as chilled castings, forgeable castings, hard alloy steel, aluminum alloy, copper alloy and bearing steel, etc. With its high-precision mechanical design and advanced optical technology, the equipment can provide accurate hardness testing for various materials and is suitable for use in scientific research institutions, factories and quality inspection departments.
