Technical Parameter：
|

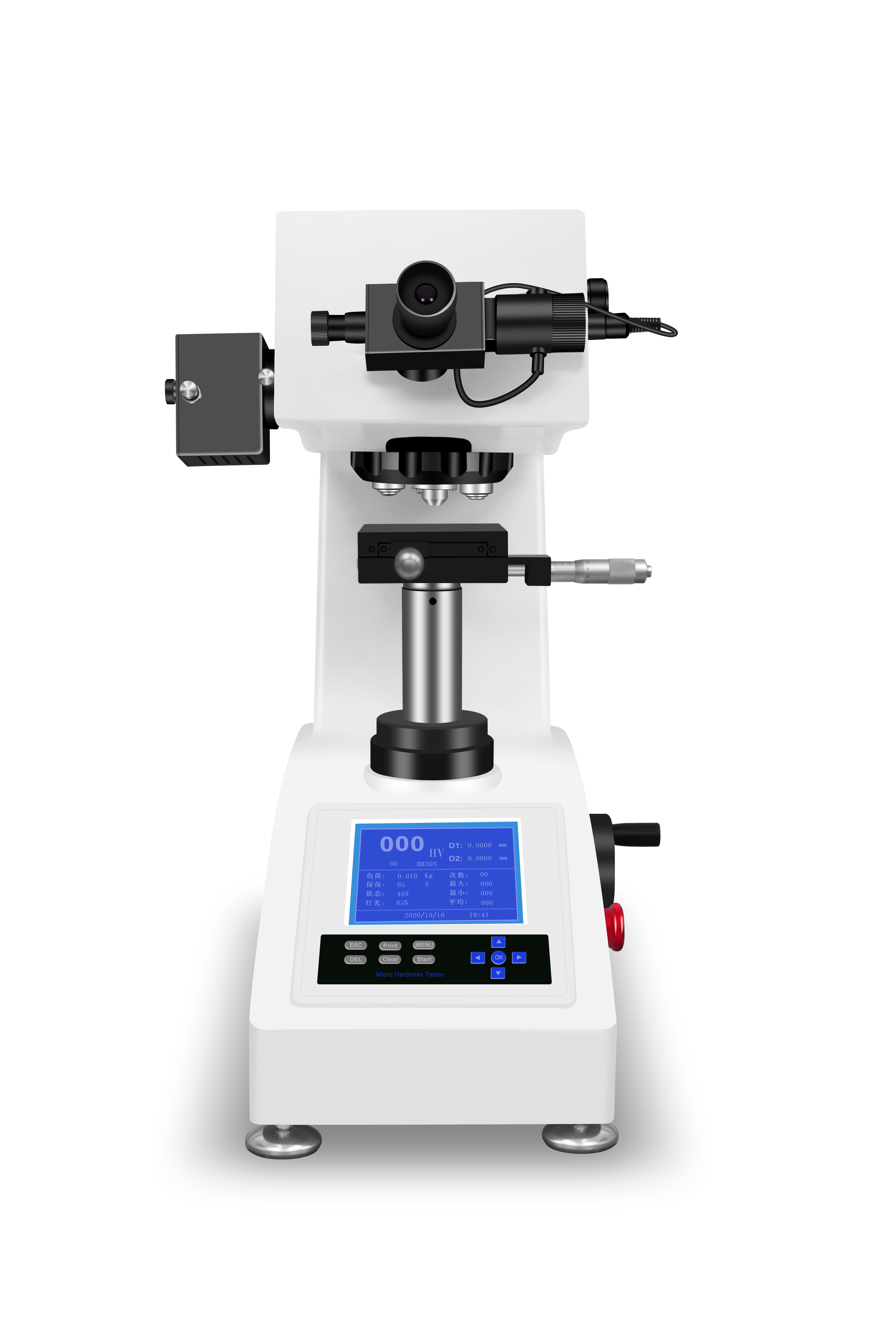

Model |
HVS-1000 |
|
|
Test force |
gf |
10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
|
N |
0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N |
|
|
Hardness measurement range |
5HV~3000HV |
|
|
Hardness value resolution |
0.1HV |
|
|
Test mode |
HV/HK |
|
|
Test force application method |
Automatic（loading/dwelling/unloading） |
|
|
Objective and indenter switching |
Manual turret |
|
|
Conversion Ruler |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HBS、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
|
|
Objective lens |
10× (observation)，40×(measurement) |
|
|
Eyepiece |
10× reading micrometer |
|
|
Total magnification |
100×，400× |
|
|
Test force dwelling time |
1~60s |
|
|
Data Output |
LCD display，built-in printer |
|
|
Light source |
Halogen light source |
|
|
X-Y test bench |
size: 100×100mm; distance of travel: 25×25mm; resolution: 0.01mm |
|
|
Maximum height of specimen |
110mm |
|
|
Distance from indenter center to machine wall |
110mm |
|
|
Power |
AC220V，50Hz |
|
|
Executive standards |
ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 |
|
|
Overall dimension |
405*290*480mm |
|
|
Weight |
Net weight 40kg |
|
Standard configuration：
|
Name |
Quantity |
Name |
Quantity |
|
Main machine |
1SET |
10× digital micrometer |
1 PCS |
|
Diamond indenter |
1PCS |
10×，40× objective lens |
1 ea. |
|
Cross test bench |
1 PCS |
Sheet holding tablee |
1 PCS |
|
Flat clamping table |
1 PC PCS |
Filament clamping table |
1 PCS |
|
Standard hardness block 400~500 HV0.2 |
1 PCS |
Standard hardness block 700~800 HV1 |
1 PCS |
|
Standard weight |
6 PCS |
Weight shaft |
1 PCS |
|
Adjust feet |
4 PCS |
Level |
1 PCS |
|
Fuse 1A |
2 PCS |
Power cord |
1 PCS |
|
Dust cover |
1 PCS |
screwdriver |
2 PCS |
|
Manual |
1SHARE |
Product certificate |
1SHARE |
