Home/ Products / High Precision Vickers Hardness Tester for Material Analysis – HVS Series

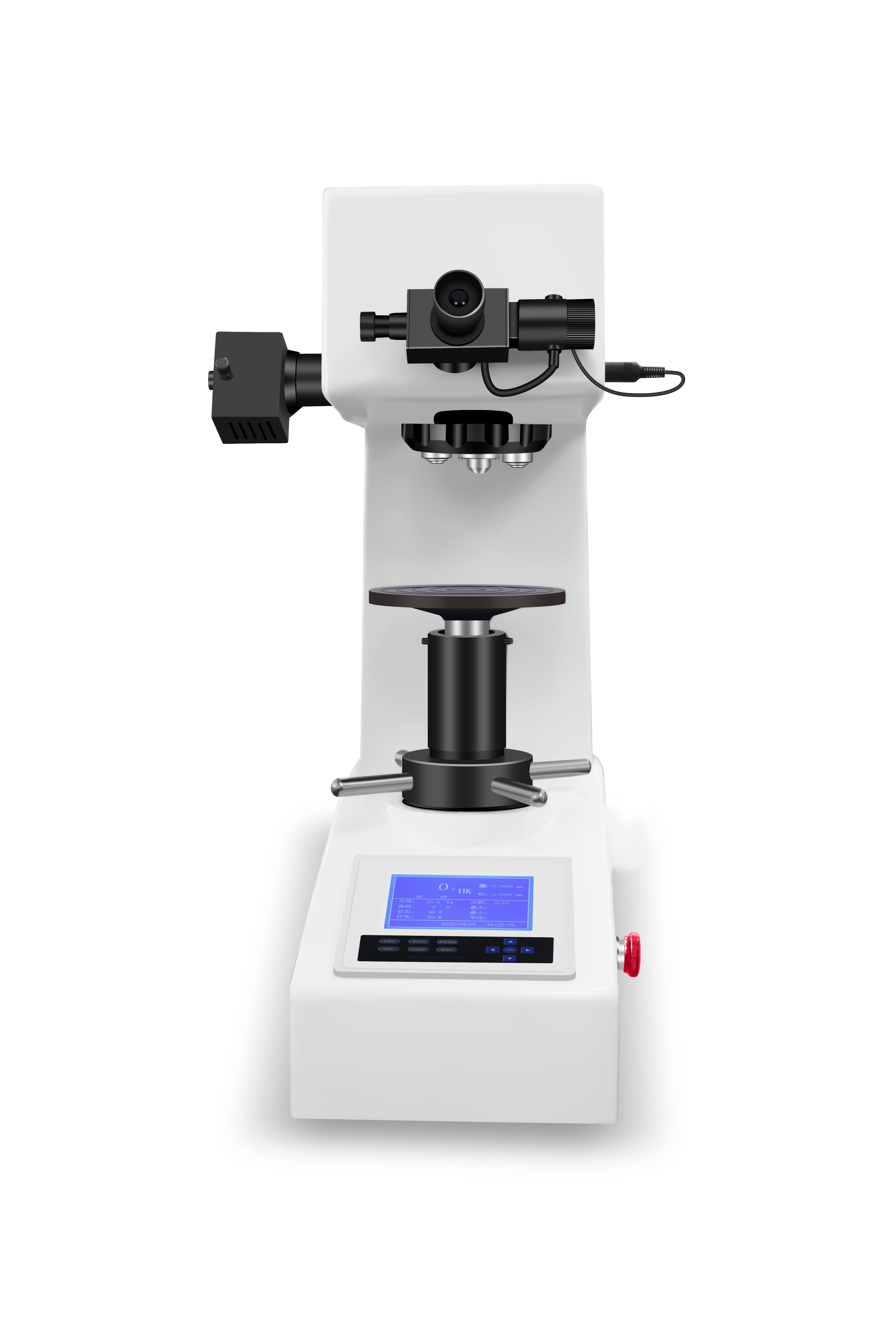

High Precision Vickers Hardness Tester for Material Analysis – HVS Series

[email protected]
Specific Information
Please contact us
Product Specifications Reference
Model
HVS-5
Test force
0.1, 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 0.98、1.96、2.94、4.9、9.8、19.6、24.5、29.4、49.0
Hardness test range
5HV~3000HV
Test mode
HV/HK
Test force application
Automatic（loading/dwelling/unloading）
Objective lens and indenter switching
Manual turret
Exchange scales
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HBS、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T

Payment method

COMM
COMM
Product Details
Product Introduction
The HVS - 5/10/30/50 Digital Display Manual Turret Vickers Hardness Tester, proudly manufactured by Lai Zhou Jin Cheng Industrial Equipment Co., Ltd., is a state - of - the - art solution for accurate and reliable hardness testing. It combines unique mechanical, optical, and light source designs, which significantly enhance the clarity and precision of indentation imaging, ensuring highly accurate measurements. The closed - loop loading control system provides excellent repeatability and stability of indication values. With selectable hardness scales (HV or HK) on the LCD display, it allows for seamless scale conversion. It comes with a 10X digital measurement microscope and a 40X objective lens, offering a broader measurement range and better operational clarity. Conforming to international standards such as ASTM and ISO, this tester is ideal for various industries. Lai Zhou Jin Cheng is dedicated to providing top - notch products and services to meet your diverse needs.
Advantages and features
1. Unique mechanical, optical, and light source design for enhanced indentation imaging clarity and precision.
2. Closed - loop loading control system ensuring excellent repeatability and stability of indication values.
3. Selectable hardness scales (HV or HK) on the LCD display for easy scale conversion.
4. Equipped with a 10X digital measurement microscope and a 40X objective lens for a broader measurement range and improved operational clarity.
5. Conforms to international standards like ASTM and ISO, guaranteeing global acceptance.
Application Scenario
This Vickers hardness tester is suitable for research institutions for material analysis and property studies. In educational settings, it can be used for teaching and laboratory experiments. In industrial applications, it is ideal for quality control in manufacturing plants. It is particularly useful for measuring small, thin specimens and brittle materials post - treatment, serving industries such as aerospace, automotive, and electronics.
Process
HVS-10 Technical Parameters
System Features
HVS-30 Technical Parameters
Quality Standard
HVS-50 Technical Parameters
Product Parameters
Objective lens: 10X (Observation)，40X(Measurement)
Eyepiece: 10X Digital reading microscope
Total magnification: 100X，400X
Dwelling time: 1~60s
Data output: LCD display reading, built-in printer
Light source: Halogen light source
Max. Sample height: 175mm
Distance from indenter center to machine wall: 125mm
Power: AC220V，50Hz
Executive standard: ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2
Dimension: 320*580*650mm
Weight: Net weight about 55kg
Type Specification Quantity
Hardness tester 1 SET
Vickers indenter 1 PC
Objective lens 10X, 40X 1 PC ea.
Accessory case 1PC
Micrometer eyepiece 10X 1PC
Big flat test bench 1PC
Small flat test bench 1PC
V test bench 1PC
Horizontal adjusting screw 4 PCS
Level gauge 1 PC
Dust cover 1 PC
Power cord 1 PC
Fuse 2 PCS
Vickers Hardness block 2 PCS
Product certificate 1 COPY
Product manual 1 SHARE
Common problem

Does this hardness tester comply with international standards?

Yes, the Digital Manual Tower Vickers Hardness Tester HVS - 5/10/30/50 complies with international standards such as ASTM and ISO, ensuring the quality and reliability of the product worldwide. We are always committed to providing high-quality products to meet the diverse needs of our customers and promote the progress and development of the industry.

What customization requirements should I pay attention to when purchasing this hardness tester?

When purchasing a digital manual tower Vickers hardness tester HVS - 5/10/30/50, if you require specific configurations or functions, please contact us for detailed customization information. Our professional team will provide personalized solutions based on customer needs to ensure that your specific requirements in hardness testing are met.
