| Objective lens: | 10X (Observation)，40X(Measurement) |
|---|---|
| Eyepiece: | 10X Digital reading microscope |
| Total magnification: | 100X，400X |
| Dwelling time: | 1~60s |
| Data output: | LCD display reading, built-in printer |
| Light source: | Halogen light source |
| Max. Sample height: | 175mm |
| Distance from indenter center to machine wall: | 125mm |
| Power: | AC220V，50Hz |
| Executive standard: | ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 |
| Dimension: | 320*580*650mm |
| Weight: | Net weight about 55kg |
| Type | Specification | Quantity |
|---|---|---|
| Hardness tester | 1 SET | |
| Vickers indenter | 1 PC | |
| Objective lens | 10X, 40X | 1 PC ea. |
| Accessory case | 1PC | |
| Micrometer eyepiece | 10X | 1 PC |
| Big flat test bench | 1 PC | |
| Small flat test bench | 1 PC | |
| V test bench | 1 PC | |
| Horizontal adjusting screw | 4 PCS | |
| Level gauge | 1 PC | |
| Dust cover | 1 PC | |
| Power cord | 1 PC | |
| Fuse | 2 PCS | |
| Vickers Hardness block | 2 PCS | |
| Product certificate | 1 COPY | |
| Product manual | 1 SHARE | |

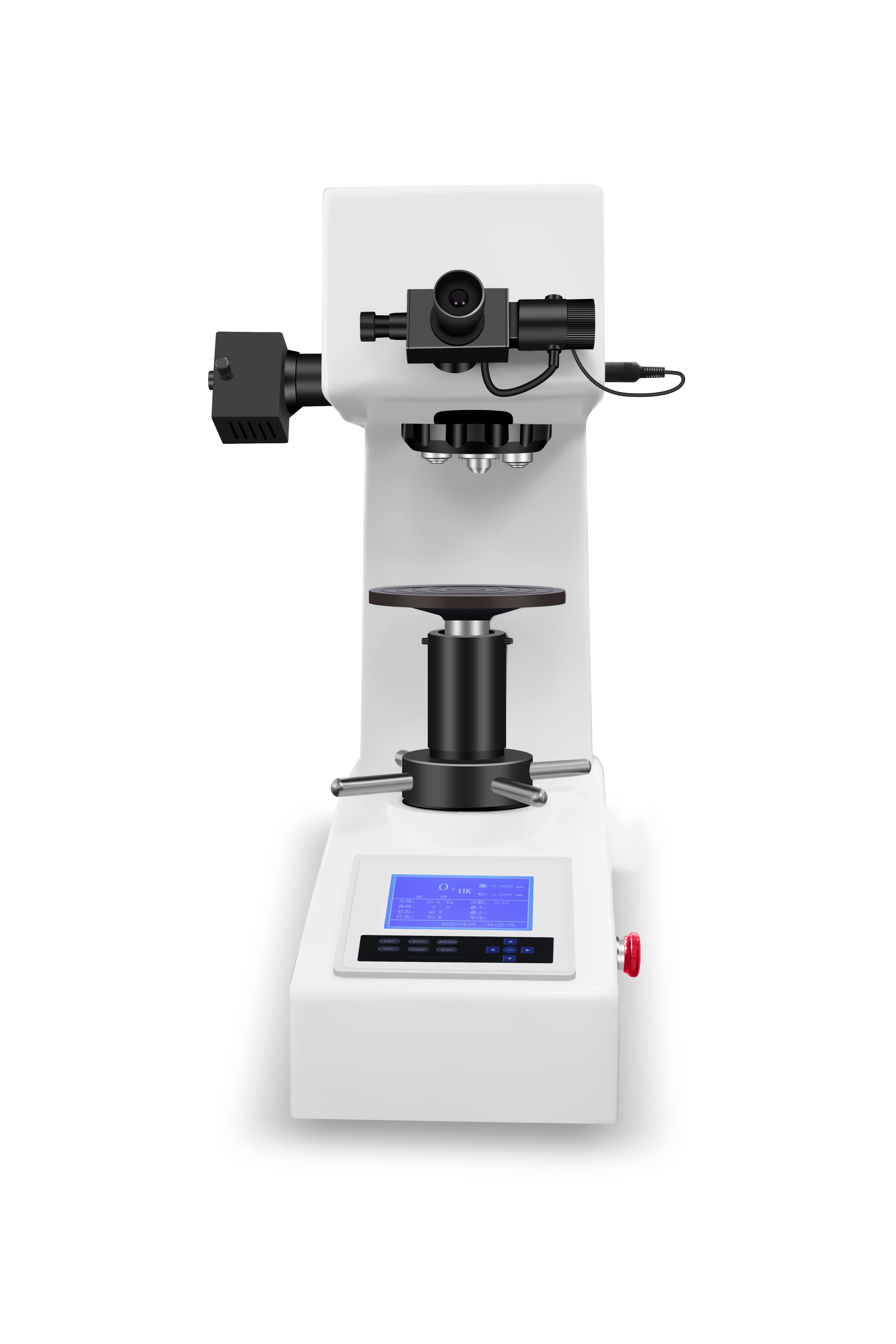

How can we ensure the stability and reliability of test results from a digital automatic turret Vickers hardness tester?
The equipment features a built-in closed-loop loading control system that automates the loading, holding, and unloading processes, significantly reducing human error and achieving precise force control. High-definition imaging technology combined with a precision digital microscope ensures clear and accurate indentation measurements. Strict adherence to ISO and ASTM standards guarantees the stability and repeatability of test results, providing customers with a reliable hardness measurement solution.
What materials can this Vickers hardness tester be used to test?
This digital automatic turret Vickers hardness tester is suitable for hardness testing of a variety of materials, especially small thin sheets and brittle materials such as glass. Due to its high accuracy and stability, it can meet the needs of customers in the metallurgy, manufacturing and other industries in the material analysis process and help users better control quality.
